Kato Class 800 Light Function Decoder Install Guide

This guide covers all versions of the Kato N Gauge Class 800 models, which are identical other than the liveries applied:

• Class 800/0 800021 in GWR Green (5-car set) (10-1671)
• Class 800/0 800010 'Michael Bond' in GWR Green with Paddington Bear branding (5-car set) (10-1673)
• Class 800/2 800209 in LNER white/red (5-car set) (10-1674)
• Class 800/1 800113 in LNER white/red (9-car set) (10-1675)

It may also be suitable for the following similar models:

• MODEL VARIANT(S)

Step 1 - Remove Decoder Cover

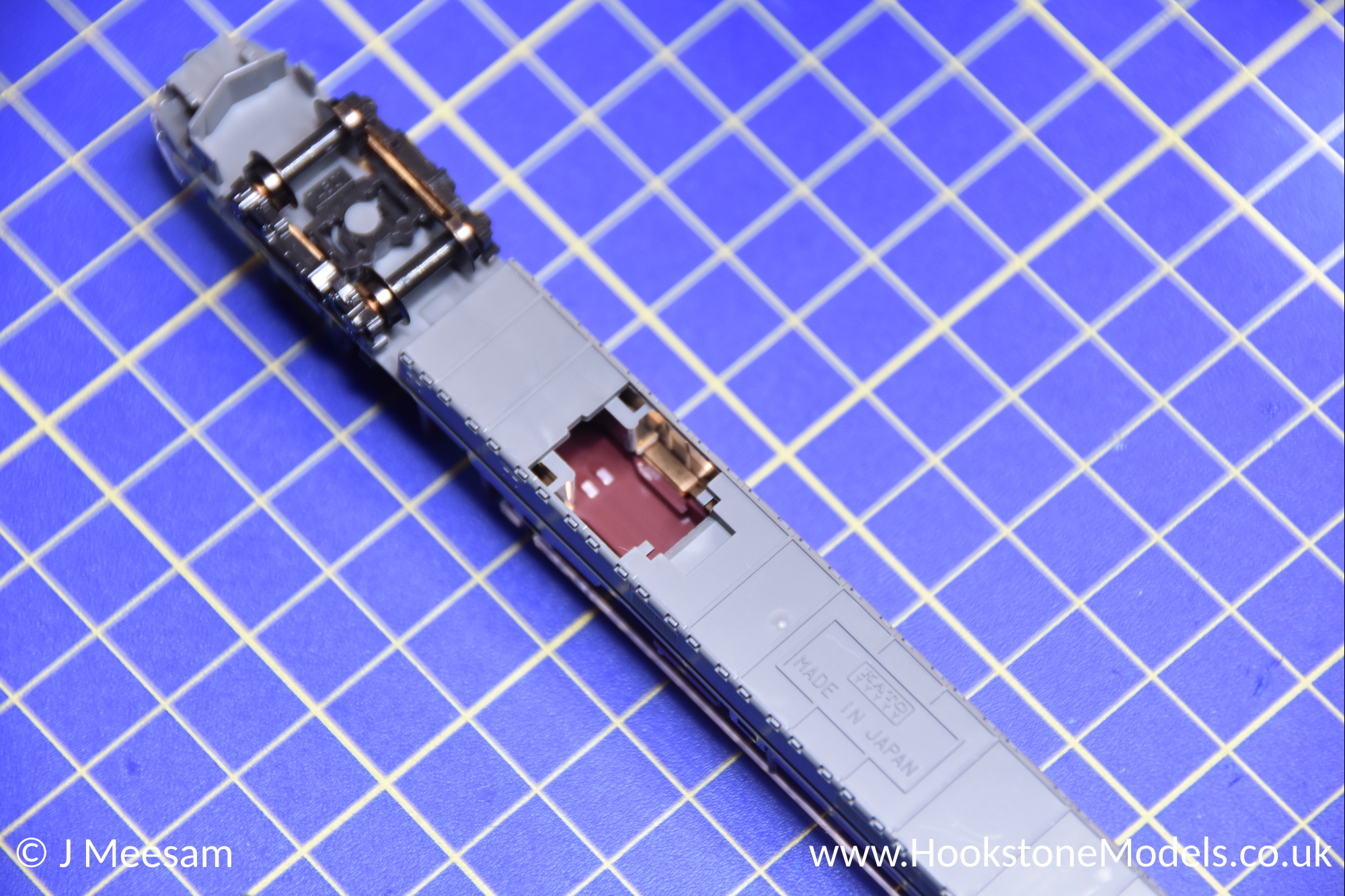

Turn the driving car upside down and unclip the cover.

Step 2 - Fit Decoder

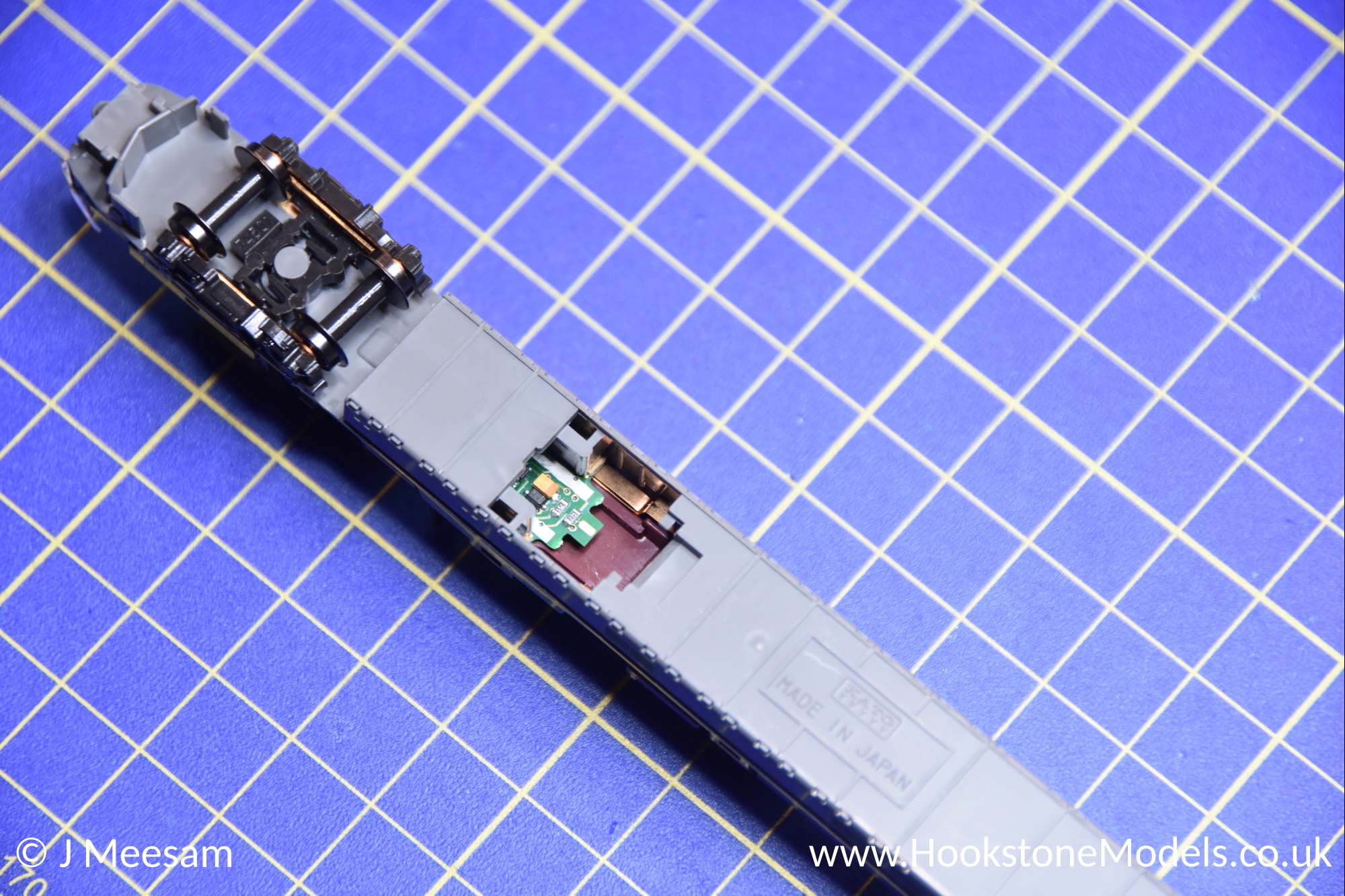

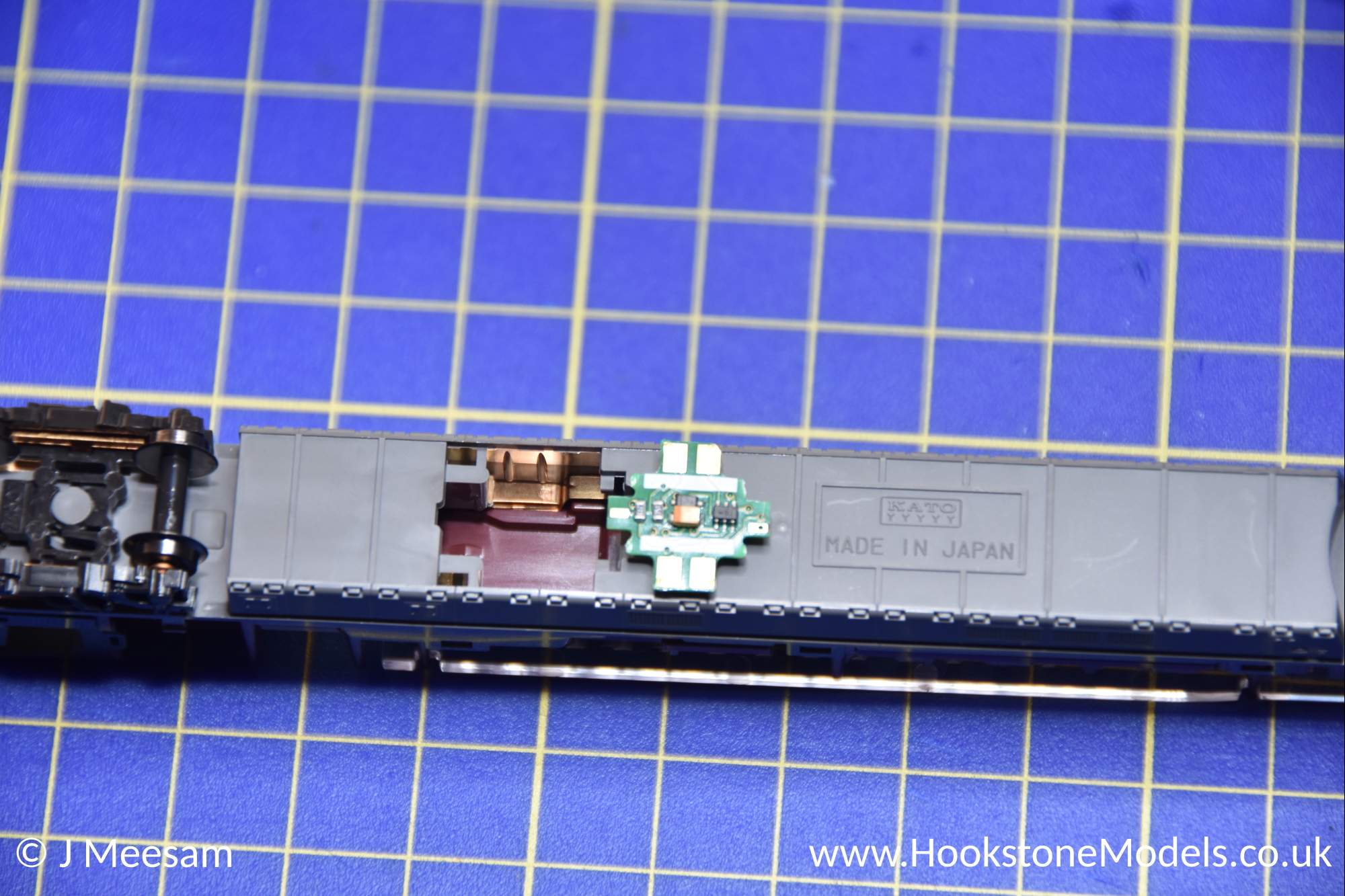

Orientate the decoder so that the side with two contact points at the top and bottom is showing, and the small black chip is towards the back of the model.

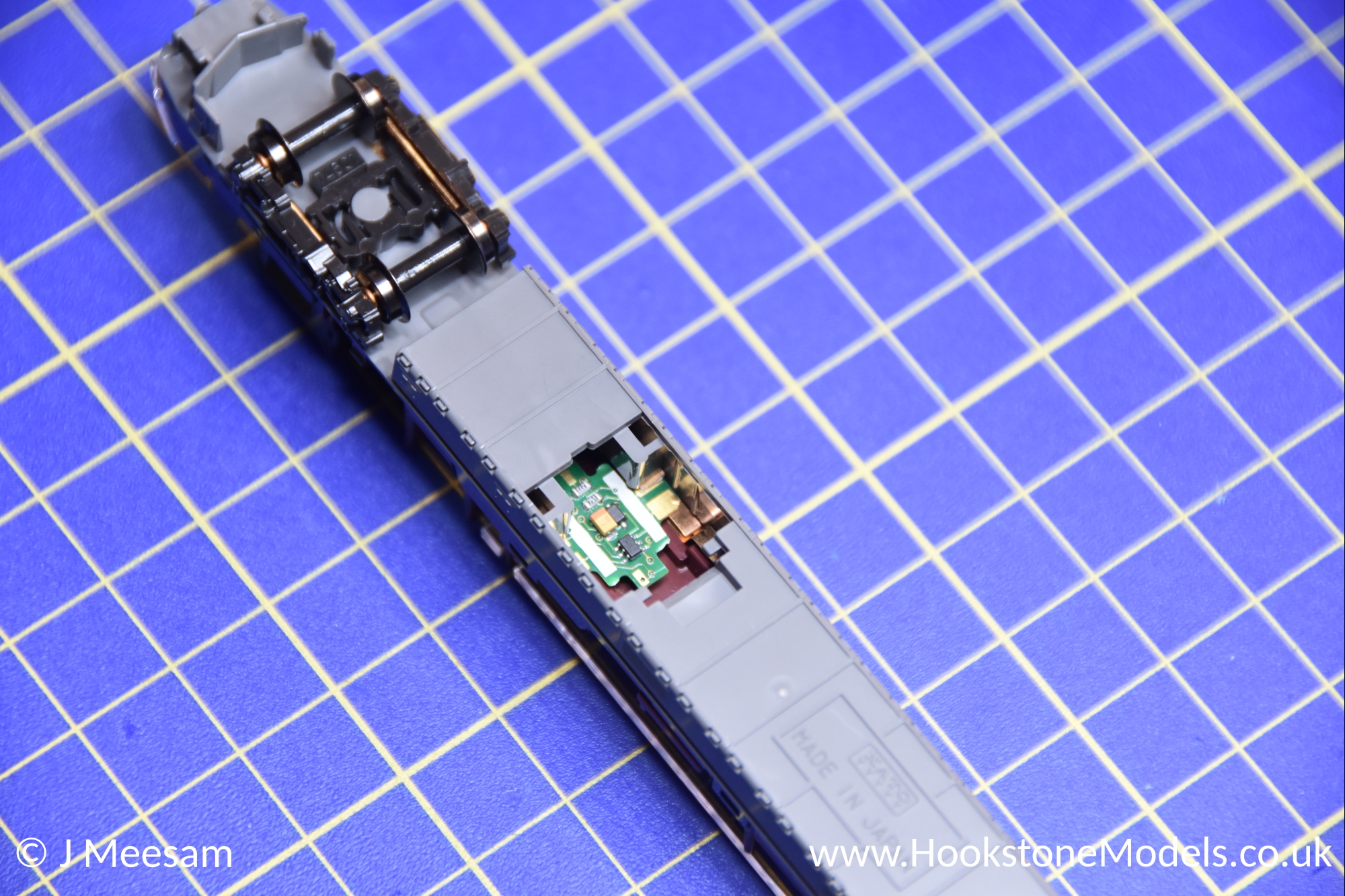

Slide the decoder in, making sure it goes all the way in and that it is over the copper spring, not below.

Step 3 - Refit Decoder Cover

Clip the decoder cover back on, and test it on your programming track.
