Kato Class 800 Interior Lighting Install

Mistakes may damage your locomotive, controller or other accessories. Use a multimeter to make absolutely sure you have completely isolated the motor from the track before testing. Always use the Programming Track for testing. Our guides are provided for reference only, and you proceed entirely at your own risk. Unsure about something - try our DCC Conversion Service instead.

Buy Kato Class 800 DCC Installation from £20.00

This guide shows how to install Kato light bars into the N Gauge Class 800 models. These are available from our online store in single units or multipacks of six.

This guide covers all versions of the Kato N Gauge Class 800 models, which are identical other than the liveries applied:

• Class 800/0 800021 in GWR Green (5-car set) (10-1671)
• Class 800/0 800010 'Michael Bond' in GWR Green with Paddington Bear branding (5-car set) (10-1673)
• Class 800/2 800209 in LNER white/red (5-car set) (10-1674)
• Class 800/1 800113 in LNER white/red (9-car set) (10-1675)

Step 1 - Remove Body

Remove the body by gently unclipping from the sides, and pushing upwards.

Step 2 - Insert Contact Strips

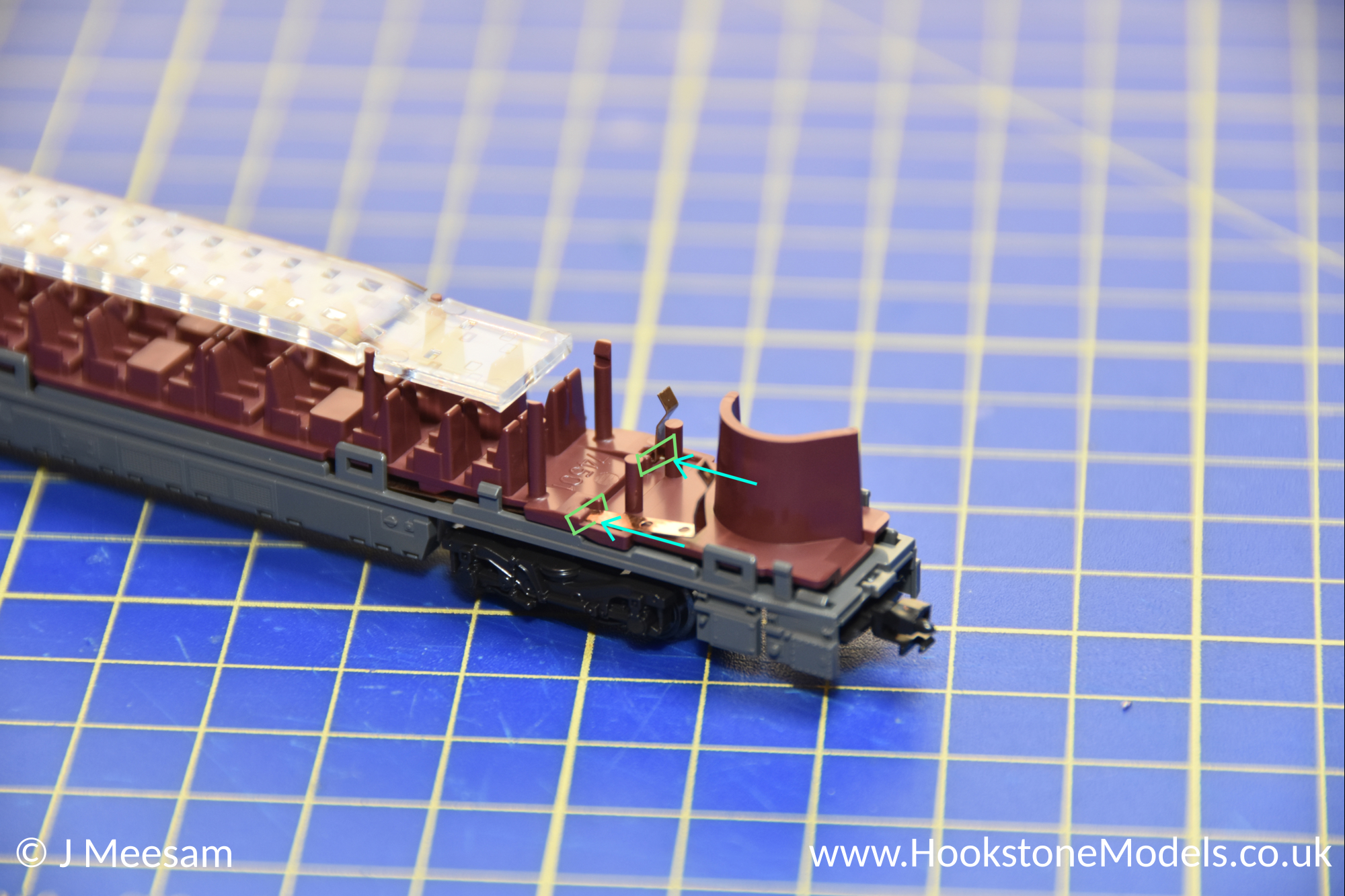

Unclip the dummy piece, which is situated next to the end of the lighting diffuser. Insert a contact strip into the slot, and push all the way in. Repeat for the other side.

Step 3 - Fit LED Unit

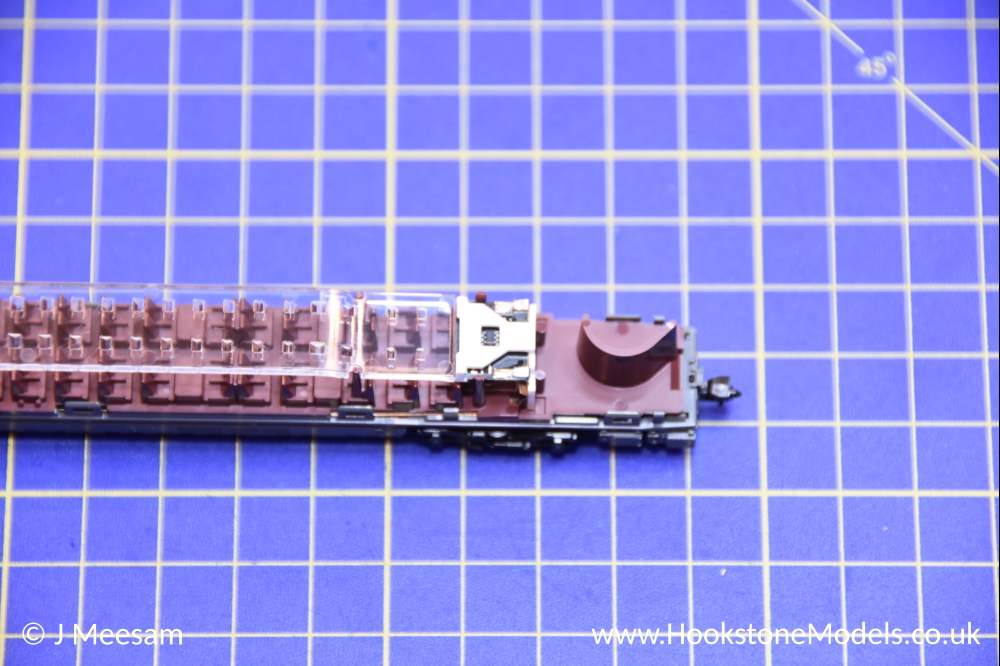

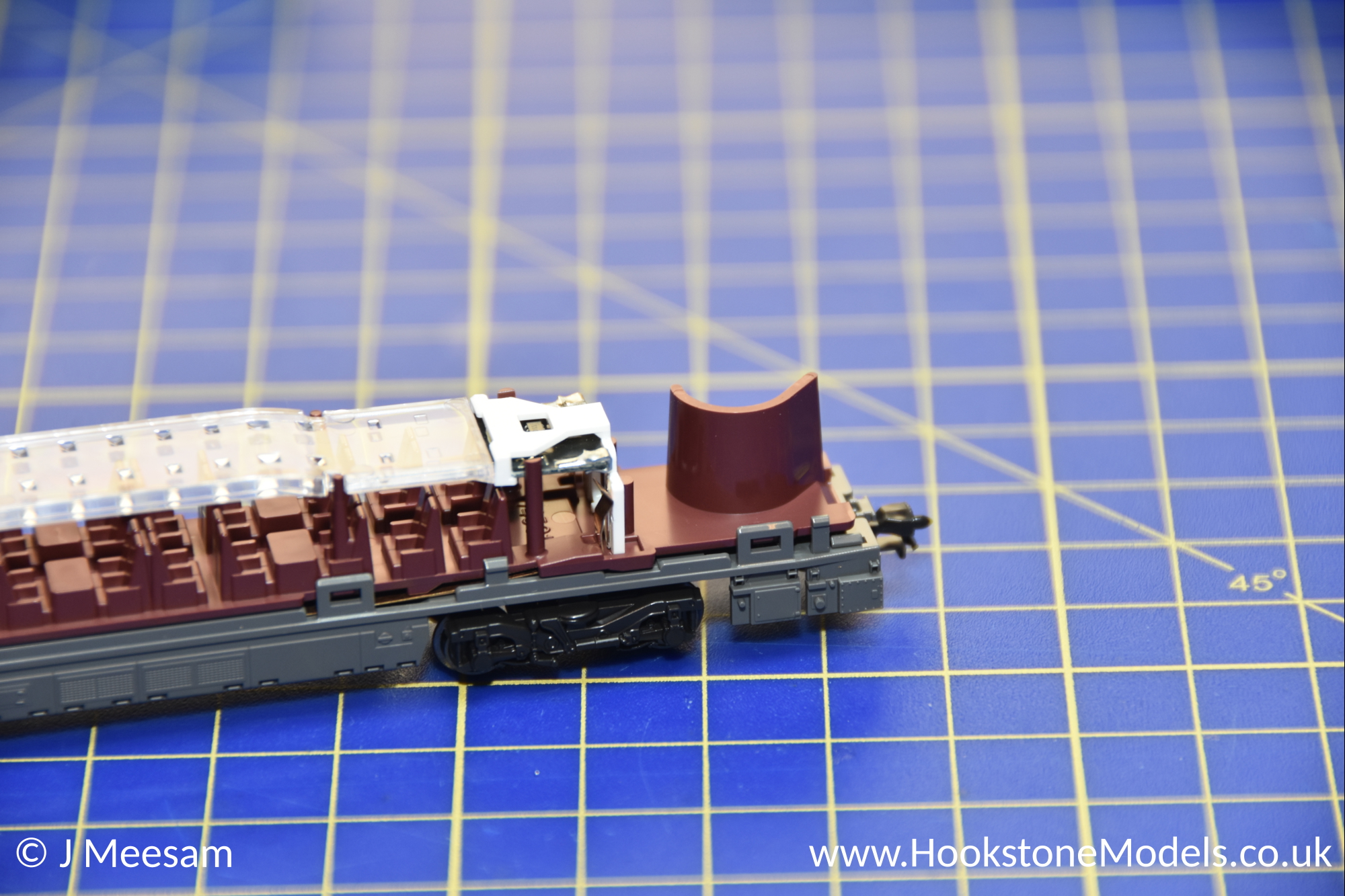

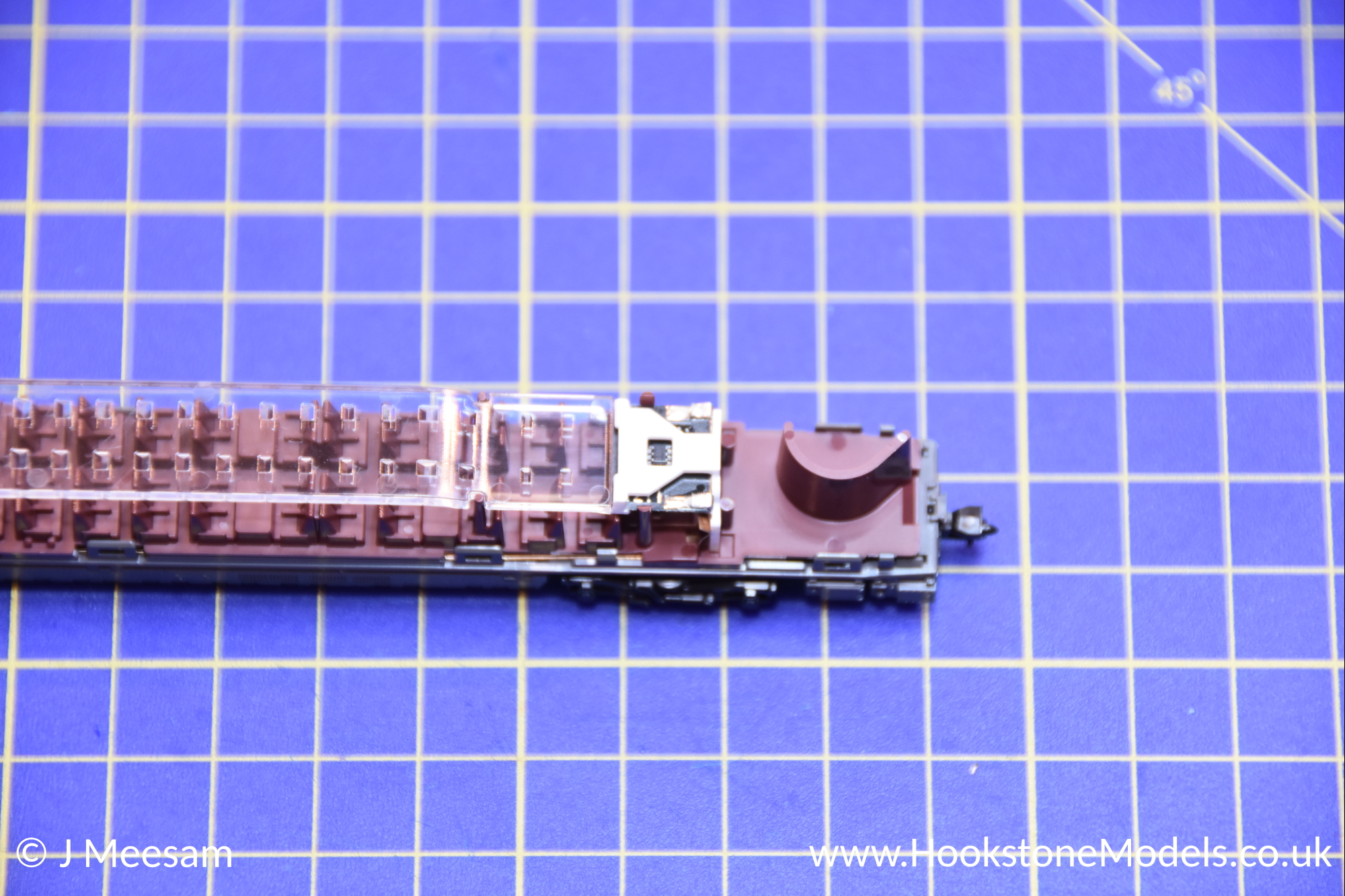

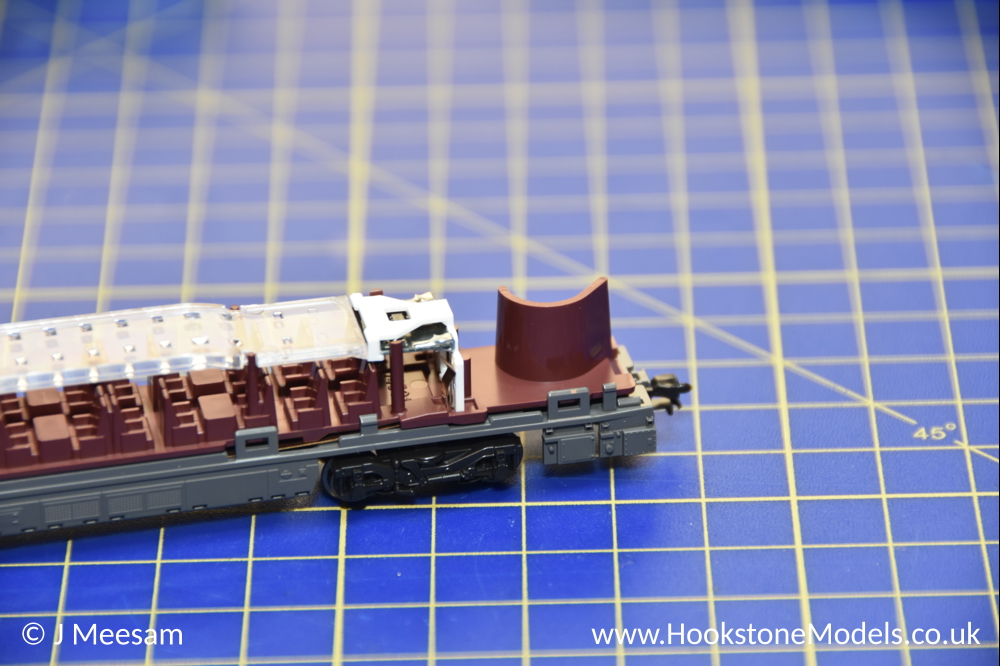

Clip the LED unit into place, making sure that the contact strip springs are both touching the vertical contacts on the LED unit.

Step 4 - Test

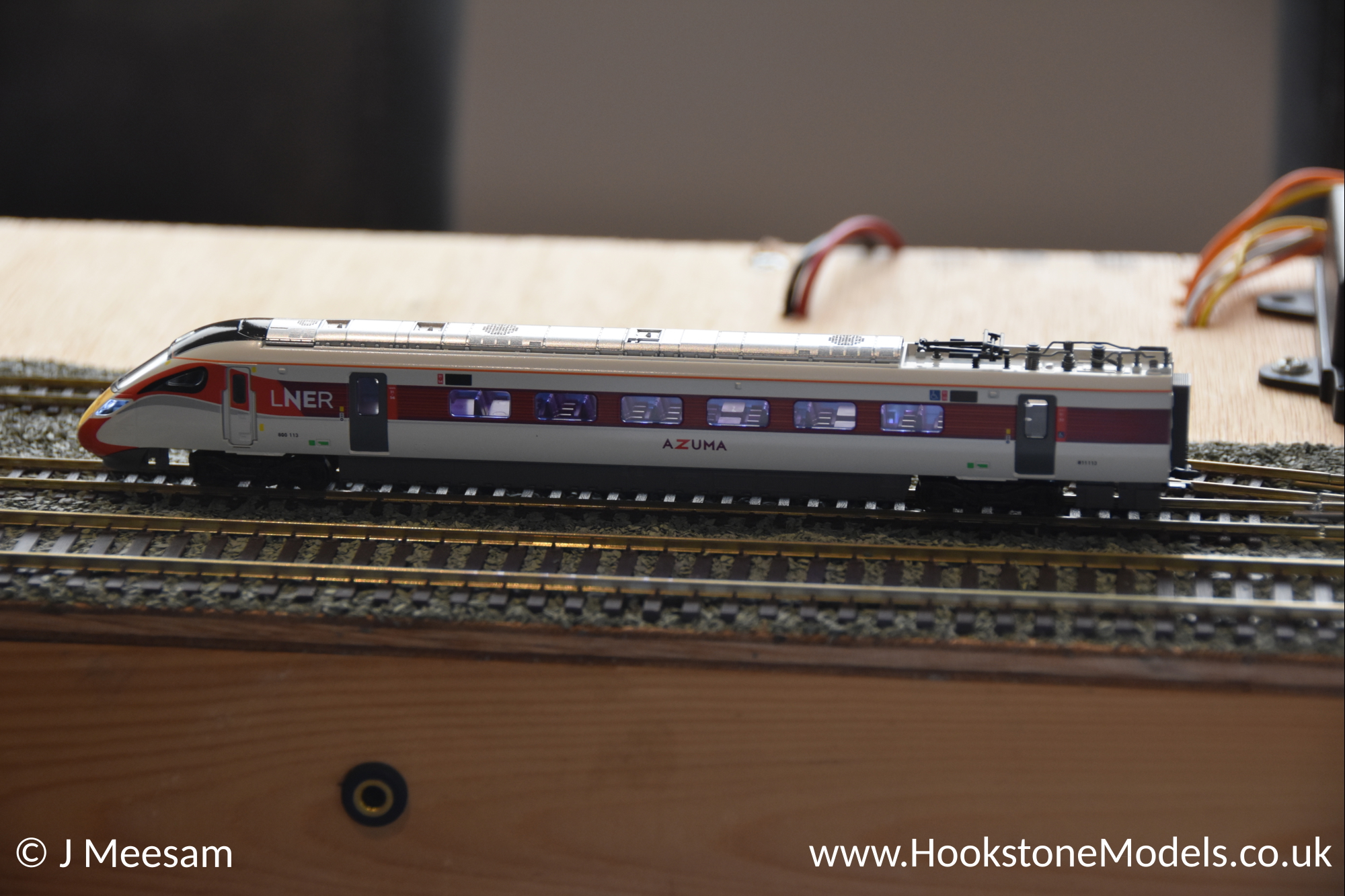

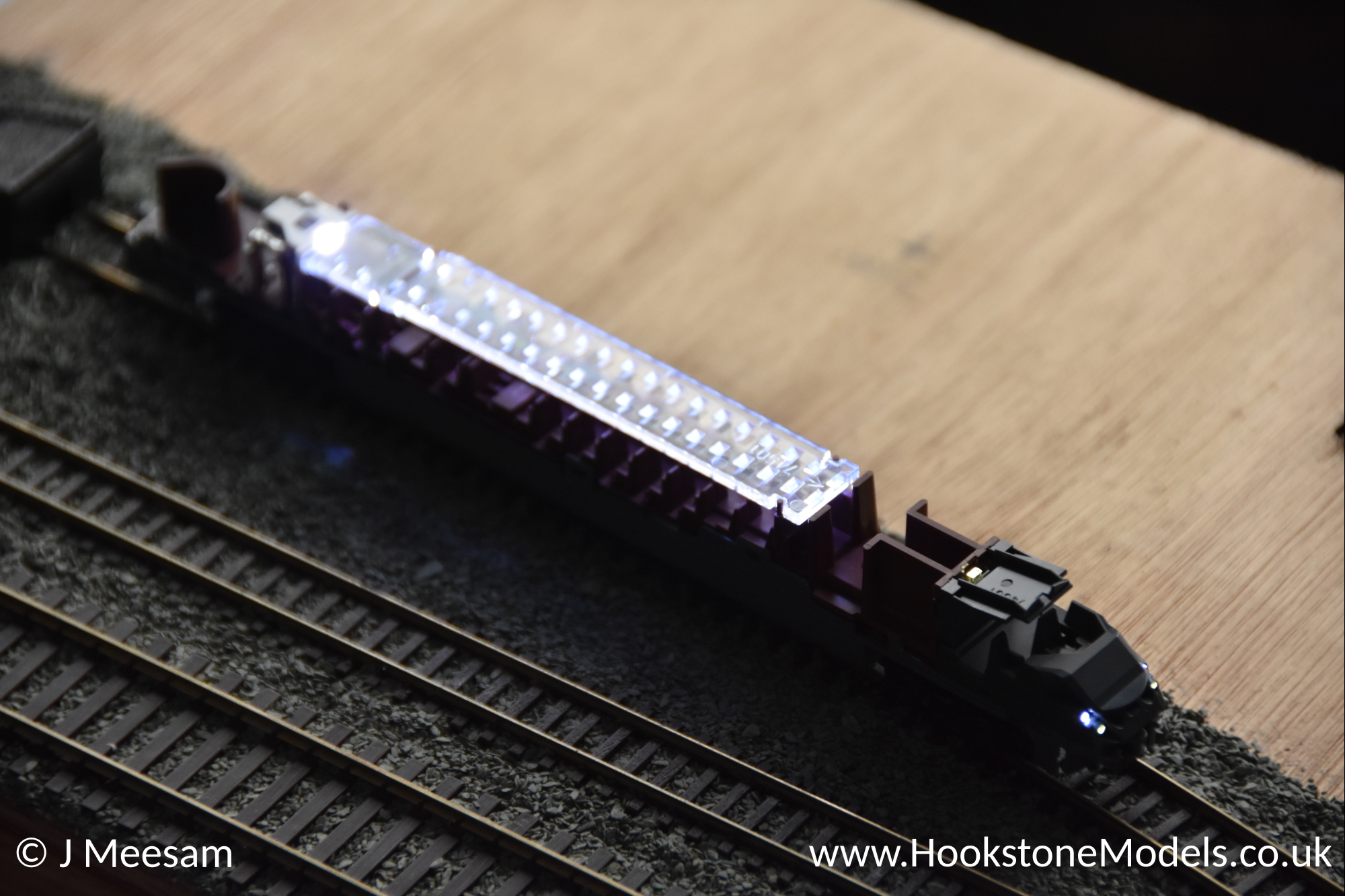

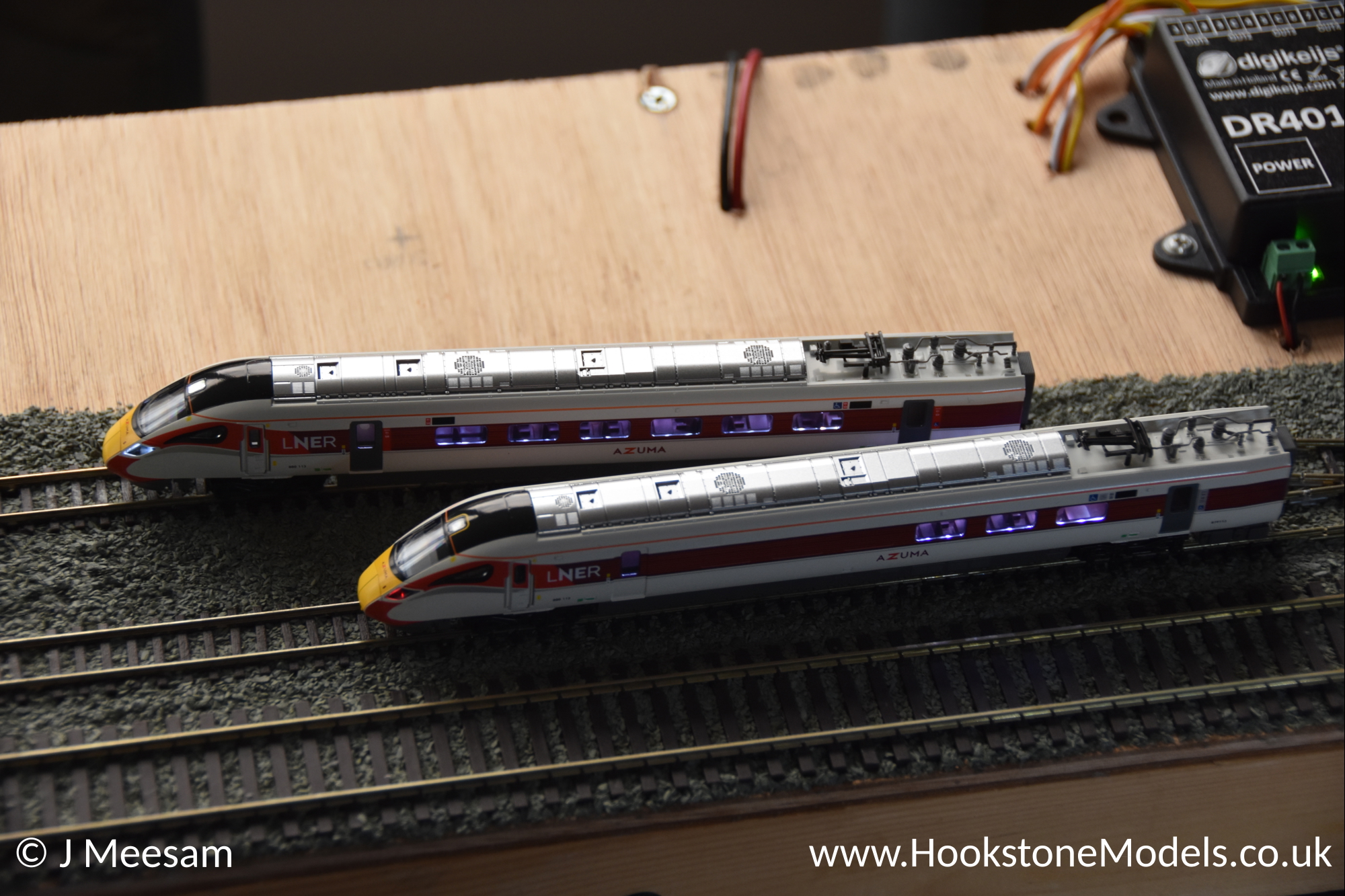

Place the unit on your test track and switch on the DCC power. The interior lighting should illuminate.

Step 5 - Refit Body

Refit the body and the conversion is complete.
