Dapol Class 142 'Pacer' DCC Sound Installation

Mistakes may damage your locomotive, controller or other accessories. Use a multimeter to make absolutely sure you have completely isolated the motor from the track before testing. Always use the Programming Track for testing. Our guides are provided for reference only, and you proceed entirely at your own risk. Unsure about something - try our DCC Conversion Service instead.

Buy Dapol Class 142 Sound Conversion from £50.00

This guide shows how to install DCC sound into the Dapol N Gauge Class 142 'Pacer' DMU models, including:

• Dapol Class 142 142065 in Northern Rail livery (ND116A)
• Dapol Class 142 142081 in Regional Railways livery (ND116B)
• Dapol Class 142 142025 in Northern Spirit livery (ND116C)
• Dapol Class 142 142085 in Arriva Trains Wales livery (ND116D)
• Dapol Class 142 142021 in Tyne & Wear yellow livery (ND116E)
• Dapol Class 142 142096 in Northern Rail livery (2D-142-001)
• Dapol Class 142 142042 in Merseyrail livery (2D-142-002)
• Dapol Class 142 142022 in Regional Railways livery (2D-142-003)
• Dapol Class 142 142001 in GMPTE Orange & Brown livery (2D-142-004)
• Dapol Class 142 142053 in provincial turquoise & blue livery (2D-142-005)

The speaker and sound decoder are installed in the dummy car. For the optimal experience, we recommend also installing a decoder in the motorized car that is syncronized with the sound decoder.

Step 1 - Remove body

Remove the body by turning the unit upside down and unclipping the front where the plastic tapers inwards.

Step 2 - Modify Decoder PCB

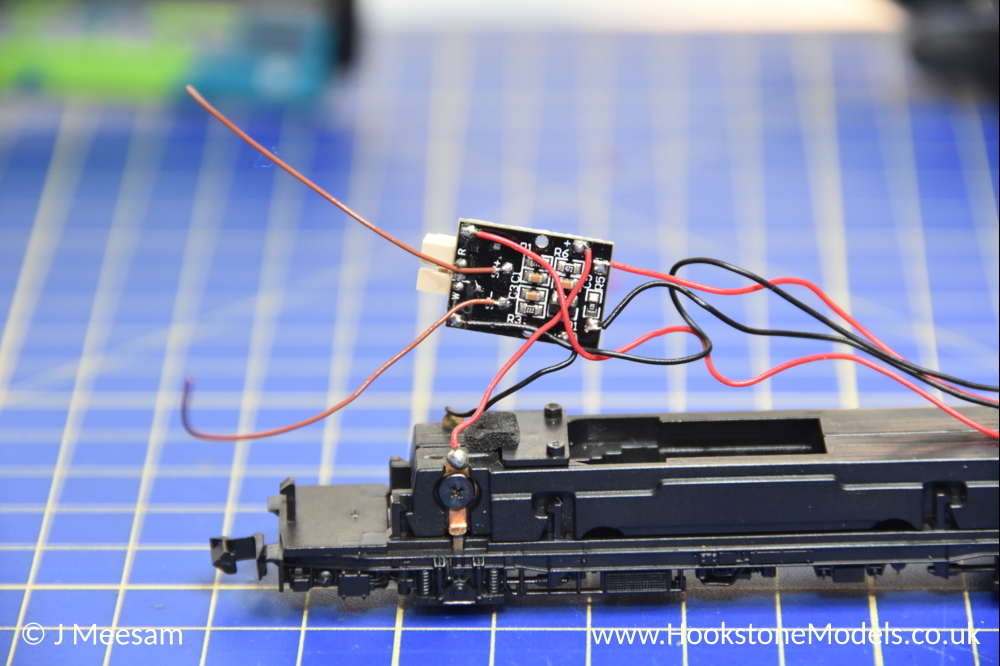

Undo the two screws holding the decoder PCB in place. Turn the PCB upside down and solder two brown wires to the solder pads marked 'Speaker +' (S+) and 'Speaker -' (S-).

Step 3 - Fit Speaker

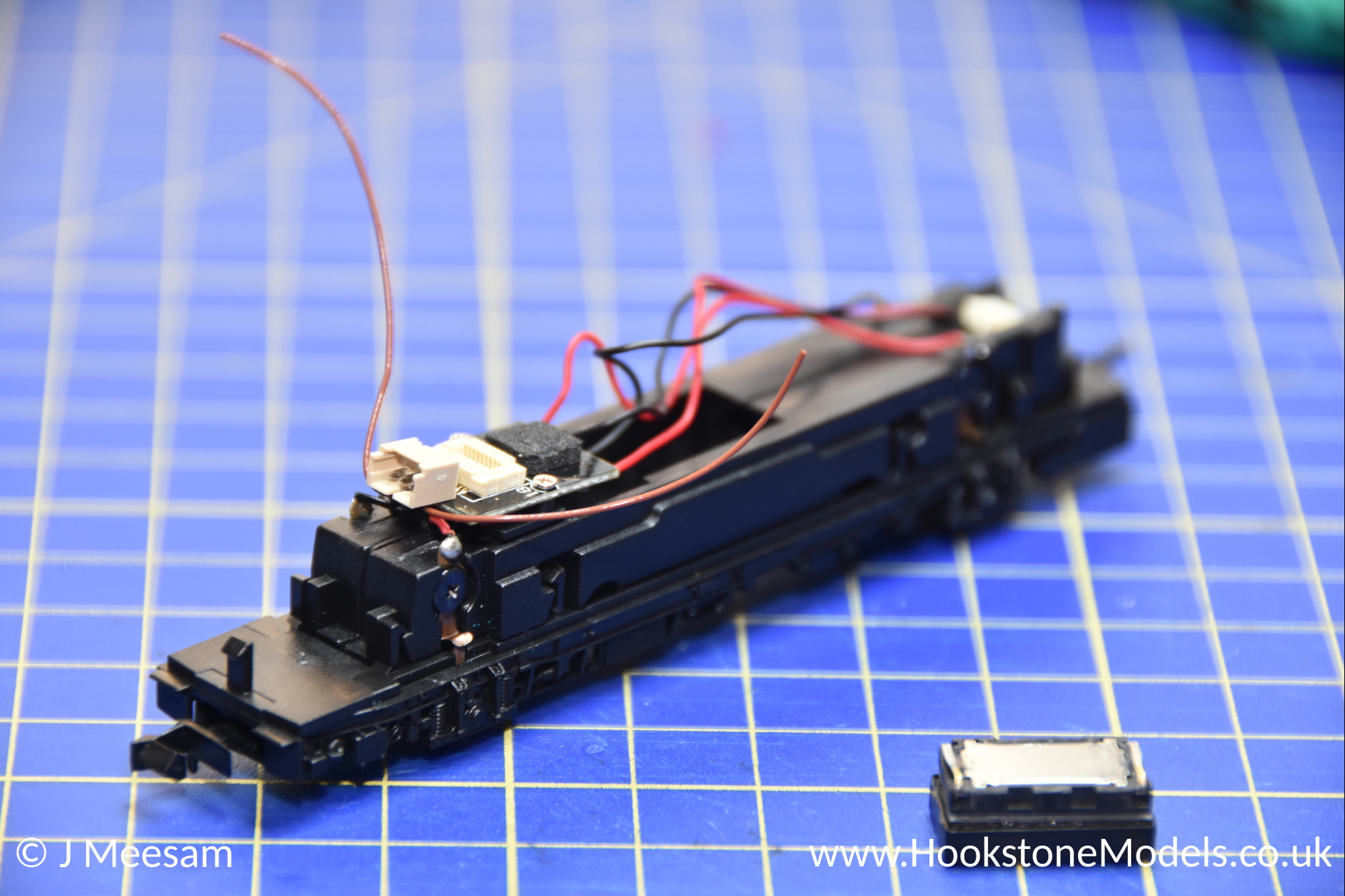

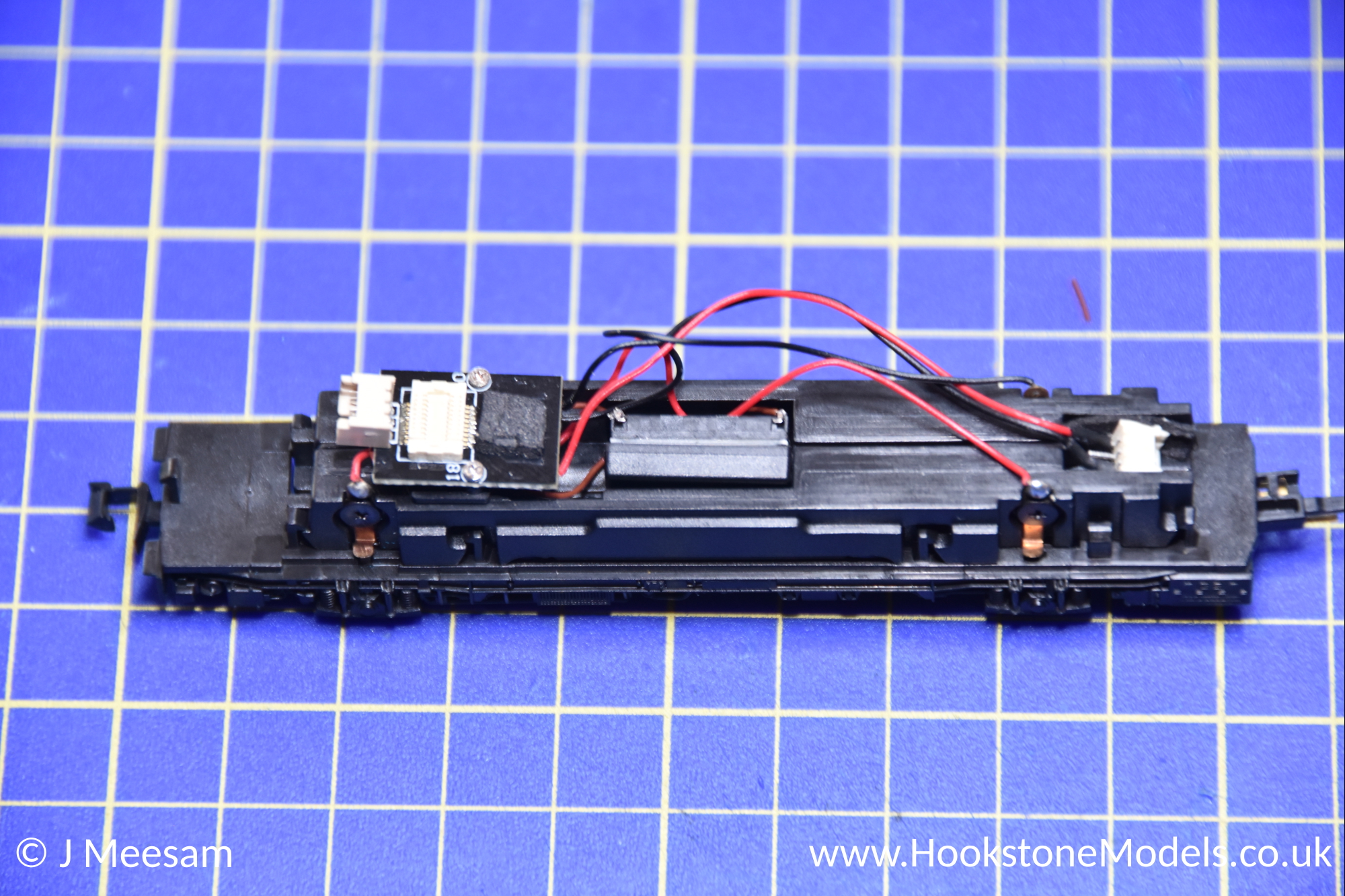

Fit the speaker into the centre void where the motor would ordinarily be. Secure it using glue or black tack, then solder the brown wires to the speaker terminals.

Step 4 - Fit Decoder

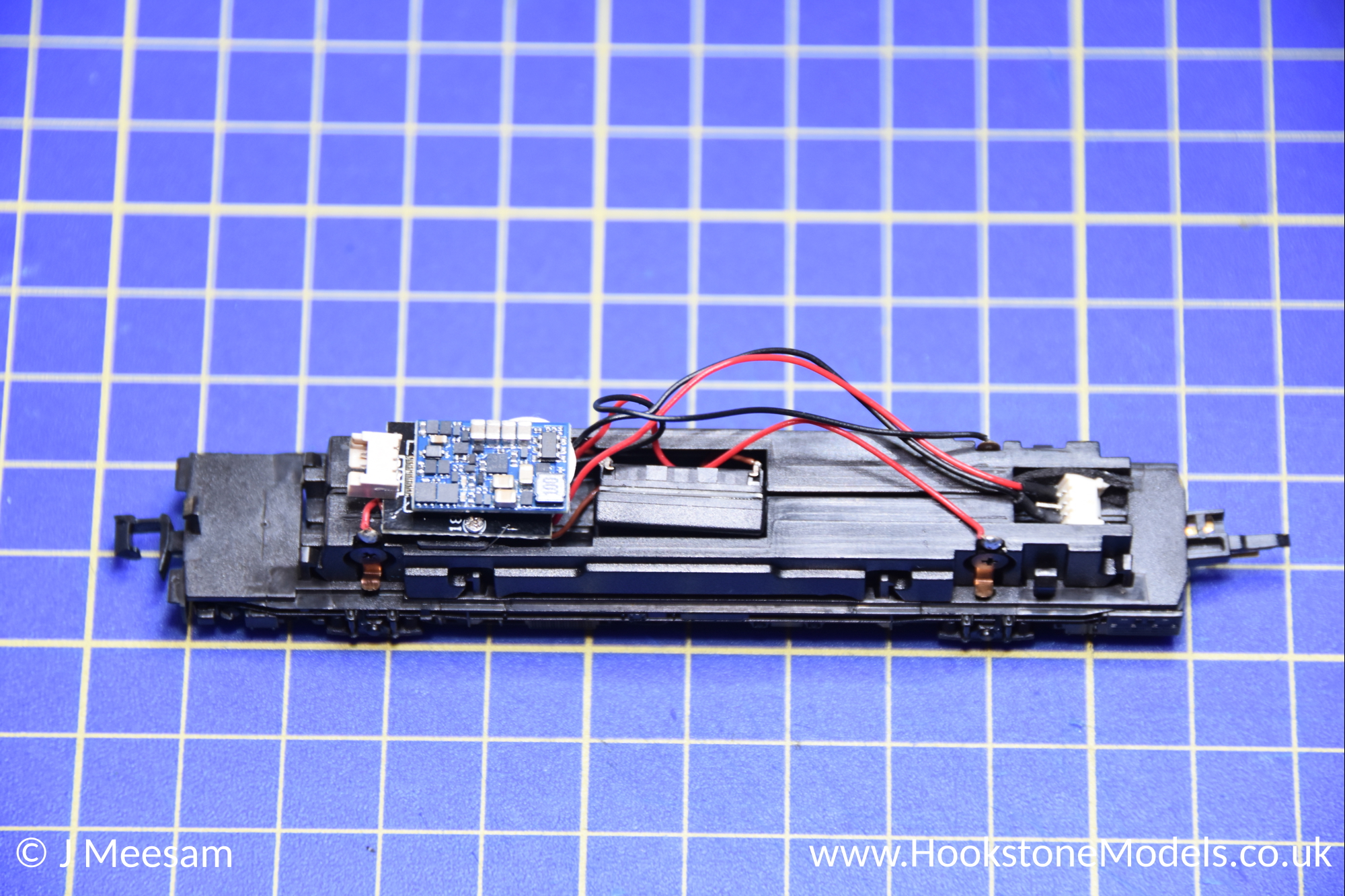

Fit your sound decoder, replace the body and the conversion is complete.
